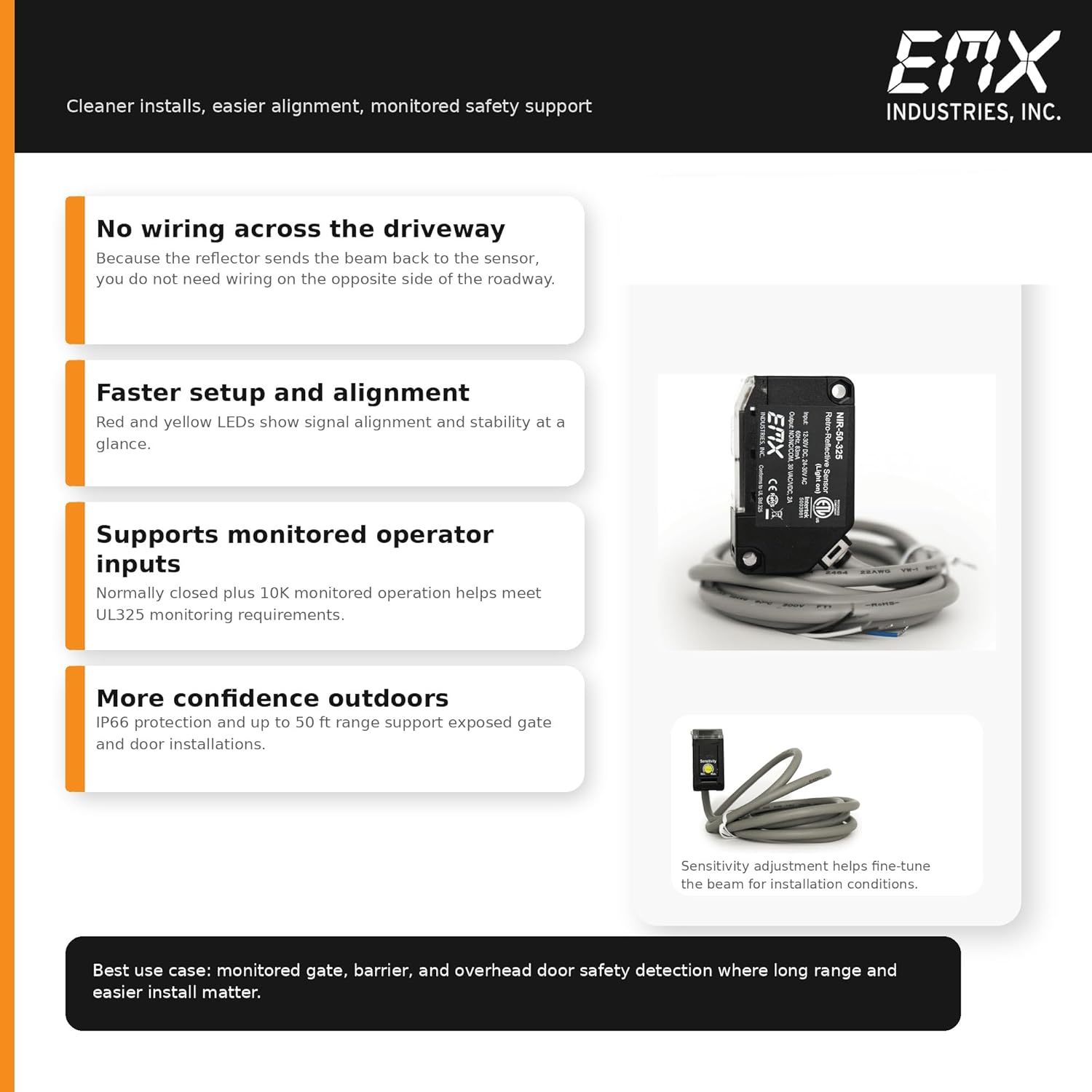

NIR-50-325 EMX UL325 Retroreflective Photoeye Kit 50ft Range 10K Monitored NC Output Compatible with Gate and Door Operators
Product details
| Management number | 220401322 | Release Date | 2026/05/03 | List Price | US$36.00 | Model Number | 220401322 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The NIR-50-325 is an extended range, retroreflective photoeye sensor providing entrapment protection for overhead doors, gates and barriers. The NIR-50-325 is UL325-2018 compliant and features an internal 10K resistor for monitored operation. Its flexible voltages, compact design and LED indicators make this photoeye easy to install. The NIR-50-325 kit includes: photoeye, reflector with hood, and mounting bracket with hardware. This retroreflective photoeye is not compatible with operators that use NO and COM (non-10K) monitoring methods. FEATURES OF OUR NIR-50-325 PHOTOEYES UL325-2018 complaint Flexible voltage: 12-30 VDC, 24-30 VAC Watertight package for reliable outdoor installation Operating range: 50 feet Lead wire: 6 feet 2 LED indicators Sensitivity adjustment Compact size: 2.5″ high, 1.5″ deep, 0.75″ wide
- UL325-compliant retroreflective photoeye kit for external entrapment protection on gates doors and barriers
- Retroreflective design uses a reflector, no wiring needed across the driveway or opening
- Supports Normally Closed (NC) and 10K monitored operation (internal 10k termination) for modern UL325 operators
- 50 ft operating range, adjustable sensitivity, and dual LED indicators for alignment and signal stability
- Wide input power 12-30 VDC or 24-30 VAC, IP66-rated enclosure for reliable outdoor installation
| Brand | Generic |
|---|---|
| Color | Black |
| Unit Count | 1.0 Count |
| Manufacturer | EMX Industries |
| Model Number | NIR-50-325 |
| Power Source | Externally Powered |
| BuiltIn Media | Photoeye, Reflector with Hood, and Mounting Bracket with Hardware |
| Maximum Range | 50 Feet |
| Mounting Type | Pole Mount |
| Compatible Devices | Gate, Door Operator |
| Battery Description | battery not included |
| Item Dimensions D x W x H | 7"D x 4"W x 3"H |
