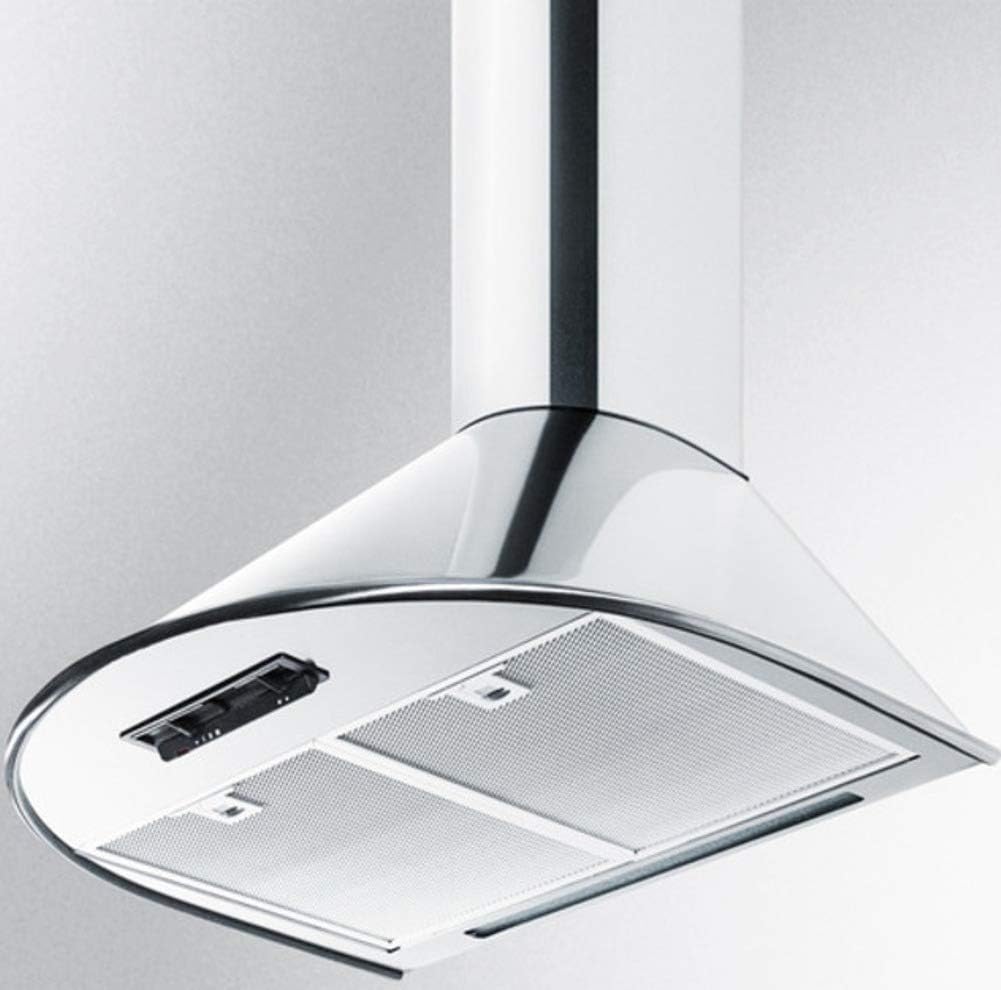

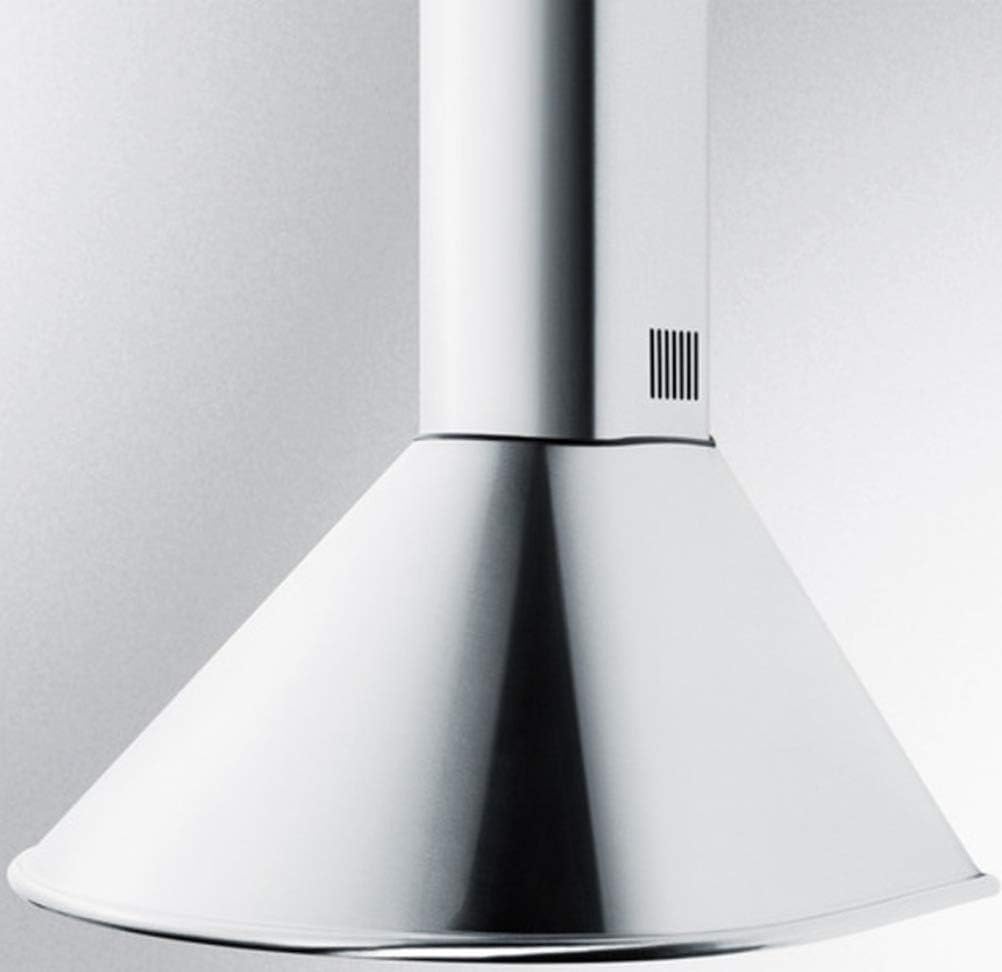

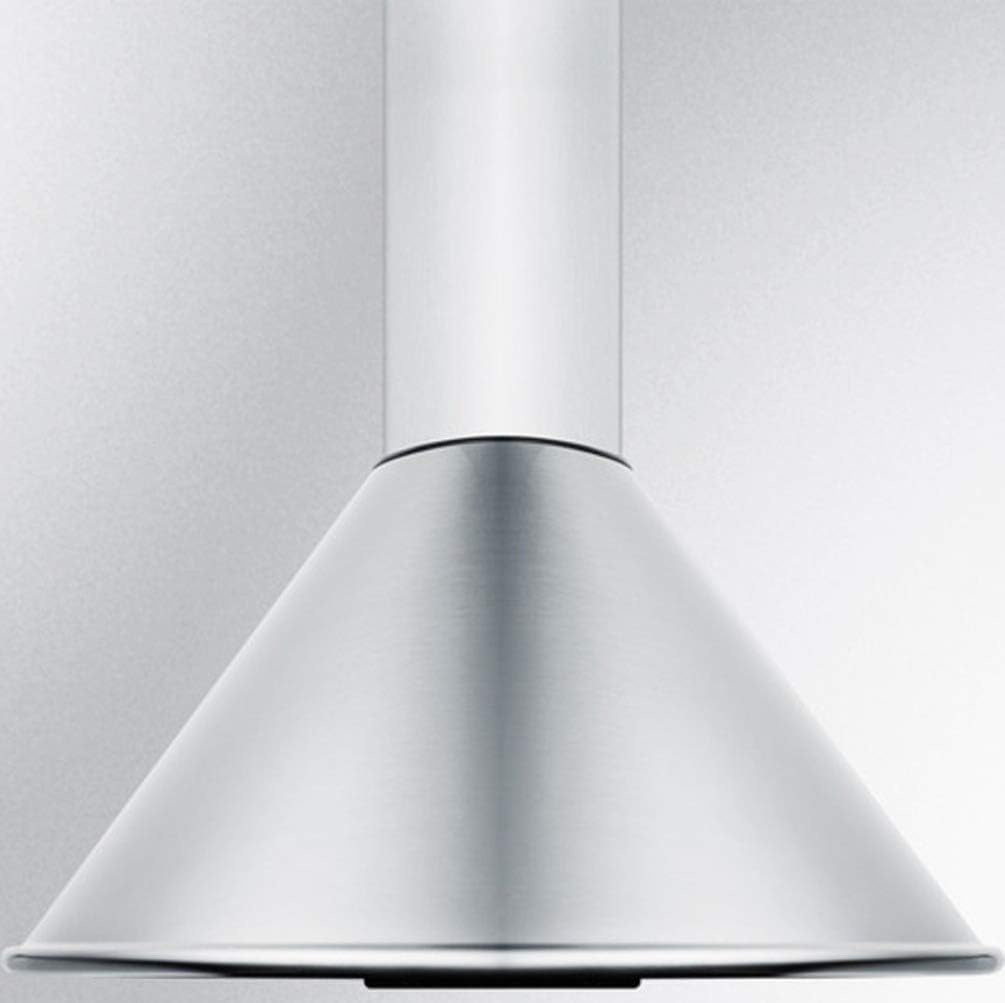

Summit Appliance SEH6624CADA ADA Compliant 24" Wide European Wall-Mounted Range Hood in Stainless Steel with a Curved Canopy and Chimney Design, 600 CFM Blower, Two Aluminum Cassette Filters

SPECIFICATIONS Overview Height of Cabinet 30.0" (76 cm) Width 23.5" (60 cm) Depth 21.63" (55 cm) Cabinet Stainless Steel US Electrical Safety UL Canadian Electrical Safety ULC Amps 5.0 Voltage/Frequency 115 V AC/60 Hz Weight 29.0 lbs. (13 kg) Shipping Weight 52.0 lbs. (24 kg) Parts & Labor Warranty 1 Year UPC 761101063591 Range Hood Installation Wall-Mounted Venting Convertible w/ Filter Set Controls Slide Light Yes Number of Lights 2 Light Type Incandescent Number of Fan Speeds 3 Maximum Air Movement 600.0 CFM Minimum Height 29.0" (74 cm) Maximum Height 41.0" (104 cm) FEATURES ADA compliant design Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required) Stainless steel construction Quality material with an elegant look in brushed stainless steel 600 CFM blower Professional European motor is preinstalled for easy use Convertible with filter Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set Two aluminum cassette filters Dishwasher safe filters offer wide filtration area for better ventilation Timer function Set the unit to ventilate for a 15 minute interval that automatically turns off when complete Two 40W lights Includes two preinstalled incandescent bulbs Three-speed fan Offers more options for ventilation European made Designed and manufactured in Spain with all UL-Listed components Height adjustable chimney Chimney can extend from 29" to 41" for the perfect fit over your range DESCRIPTION Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Made in Spain, the SEH6624CADA is a 24" wide range hood with a 600 CFM blower and unique curved canopy design. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two 40 watt halogen light bulbs are pre-installed, offering an elegant illumination of your range. The SEH6624CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This wall-mounted range hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Europe and ships in one box. Additional ADA compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices. DOWNLOADS BROCHURE w/ DRAWINGS SEH6624CADA.pdf TECHNICAL DRAWING (.dwg) SEH6624CRANGEHOODA-C2000.dwg USE & CARE Range_Hoods_C_and_Island_Models.pdf USE & CARE SEH_ADA_Series_Remote_Installation_Instructions.pdf

• ADA Compliant: Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines. Made in Spain, the SEH6624CADA is a 24" wide range hood with a 600 CFM blower and a unique curved canopy design.
• Features: Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two 40-watt halogen light bulbs are pre-installed, offering an elegant illumination of your range. The SEH6624CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height by ADA guidelines.
• Stainless Steel Finish: Stainless steel construction ensures quality material with an elegant look in brushed stainless steel. This range hood is manufactured in Europe with all UL-listed components, ensuring durability and performance.
• Convertible with Filter: This wall-mounted range hood is designed for ducted use but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). It offers versatility in ventilation options to suit different kitchen setups and configurations.
• Height Adjustable Chimney: The chimney can extend from 29" to 41" for the perfect fit over your range, providing flexibility in installation and ensuring optimal performance. Whether your kitchen has standard or higher ceilings, the height-adjustable chimney allows for seamless integration and functionality.
