Speedway Motors Frame Rail Mount Transmission Cooler, 17.5 x 2.5 x 1.75 Inch Aluminum Double Pass Design with -6 an Fittings, Inline Cooling for Automatic Transmissions

Transmission cooler for use as an inline or cooler arrangement. Aluminum tube and fin construction with 1/2-inch double pass cooling tubes. Mounts to fCompatible with Rame rail, crossmember, or other under car area. Can be used for transmission or power steering fluid cooling. Soldered AN6 inlet and outlet fittings for use with AN6 cooler hose and fittings. Includes AN6 to 3/8-inch hose barb adapters for use with standard cooler hose and clamps. 1/8-inch NPT fittings included for transmission case or radiator connection. Aluminum mounting brackets provide stand-off distance for airflow. Protect Your Automatic Transmission from Excessive Heat with Our Easy to Install Cooler Automatic transmissions generate a lot of heat, especially when coupled with a small high-stall torque converter. Be it a lot of stop and go traffic or some high speed runs, either of them can kill a transmission in short order if you don’t keep your transmission fluid temperature in check. Transmission fluid temperature should be maintained between 180-220 degrees Fahrenheit, just like your coolant temperature. You can monitor this with a trans temp gauge and an inline adapter if your transmission pan does not have a bung for a sending unit. Production cars use an integrated transmission cooler that is mounted within the radiator’s end tank. However, this isn’t always an option on some builds due to custom radiator configurations and cCompatible with Ramped engine bays. Mounting an external cooler anywhere there is airflow, and it is safe from road debris, is your next best option

• Frame Rail Mount Design — Slim remote transmission cooler mounts along frame rails, crossmembers, or underbody locations while delivering effective fluid cooling.
• Double Pass Cooling Core — 1/2-inch tube-and-fin aluminum construction with double-pass flow improves heat rejection for demanding driving conditions.
• Flexible Plumbing Options — Features soldered -6 AN inlet and outlet fittings and includes adapters for standard 3/8-inch transmission cooler hose.
• Inline or External Cooling Use — Can be installed in series with an in-radiator cooler or used as an external transmission cooler for custom or tight engine bay setups.

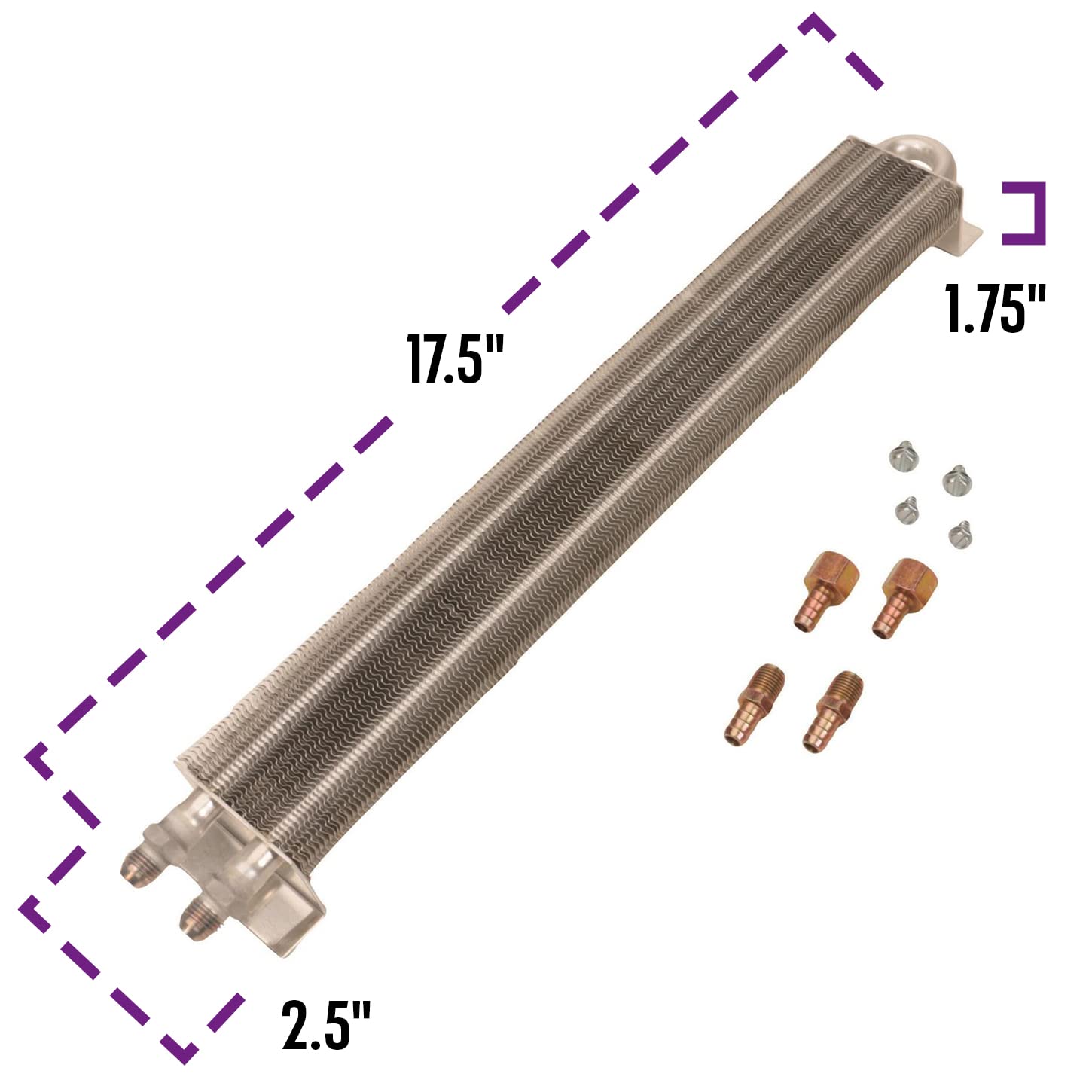

• Compact Universal Fit — Measures 17.5" long x 2.5" wide x 1.75" tall and includes aluminum mounting brackets for proper airflow clearance.
